H2CO molecute - optimize

This is a light example of how to optimize the molecular potential. For more sophistecated optimization, refer docs/notebook/_h2co_opt.py.

Environment

3.12.2 (main, Feb  6 2024, 20:19:44) [Clang 15.0.0 (clang-1500.1.0.2.5)]
pompon version = 0.0.9
macOS-14.4.1-arm64-arm-64bit

Import modules

Code

import matplotlib.pyplot as plt
import numpy as np

# Set your favorite.
plt.style.use("seaborn-v0_8-darkgrid")
plt.rcParams.update(
    {
        "image.cmap": "jet",
    }
)

Load data

Code

x_train = np.load("data/x_train.npy")
x_test = np.load("data/x_test.npy")
x_valid = np.load("data/x_validation.npy")

y_train = np.load("data/y_train.npy")
y_test = np.load("data/y_test.npy")
y_valid = np.load("data/y_validation.npy")

f_train = np.load("data/f_train.npy")
f_test = np.load("data/f_test.npy")
f_valid = np.load("data/f_validation.npy")

y_shift = -3112.1604302407663  # eV (mean)
y_min = -3113.4044750979383  # eV (eq. position)

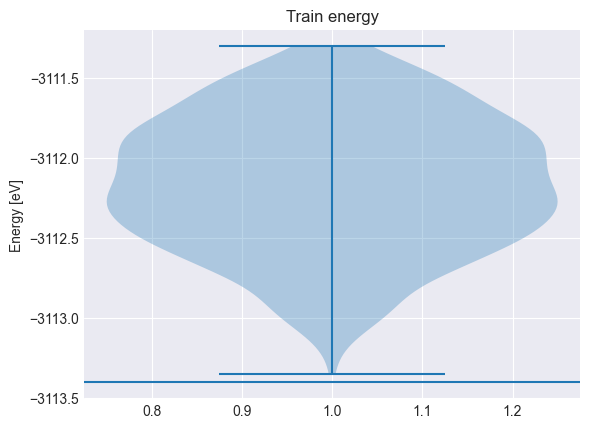

plt.title("Train energy")
plt.violinplot(y_train + y_shift)
plt.axhline(y_min)
plt.ylabel("Energy [eV]")
plt.plot()
plt.show()

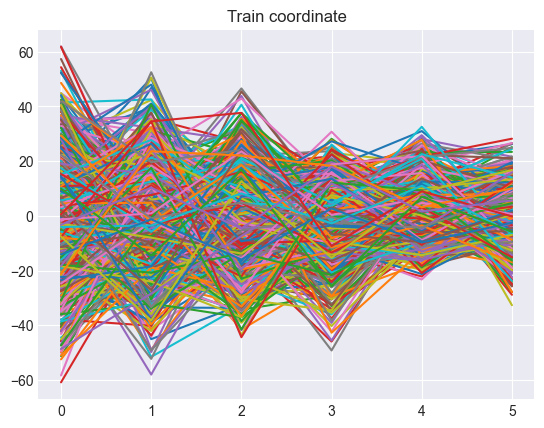

plt.title("Train coordinate")
plt.plot(np.arange(6), x_train.T)
plt.show()

Code

x_scale = x_train.std()
y_scale = y_train.std()

x_train /= x_scale
x_test /= x_scale
x_valid /= x_scale
y_train /= y_scale
y_test /= y_scale
y_valid /= y_scale
f_train /= y_scale / x_scale
f_test /= y_scale / x_scale
f_valid /= y_scale / x_scale

Consturct a model

MPO is encoded from sum of products functions. We start from SOP training, and then convert it to MPO.

Code

pompon.OneBody?

Init signature:
pompon.OneBody(
    input_size: int,
    hidden_size: int,
    basis_size: int,
    output_size: int = 1,
    w_scale: float = 1.0,
    b_scale: float = 1.0,
    w_dist: str = 'uniform',
    b_dist: str = 'linspace',
    x0: jax.Array | None = None,
    activation: str = 'moderate+silu',
    key: jax.Array | None = None,
    X_out: numpy.ndarray | None = None,
    fix_bias: bool = False,
)
Docstring:
Function given by sum of one-body functions
$$
   f(q_1, q_2, \ldots, q_f) =
   \sum_{p=1}^{f} \sum_{\rho_p} W_{\rho_p}^{(p)}
   \phi_{\rho_p}(w_{\rho_p}^{(p)} q_p+b_{\rho_p}^{(p)})
$$
File:           ~/GitHub/Pompon/pompon/sop.py
Type:           ABCMeta
Subclasses:

One-body regression

\[ f(q_1, q_2, \ldots, q_f) = \sum_{p=1}^{f} \sum_{\rho_p} W_{\rho_p}^{(p)} \phi_{\rho_p}(w_{\rho_p}^{(p)} (q_p-q^{\mathrm{ref}}_{\rho_p})+b_{\rho_p}^{(p)}) \] \[ \mathbf{q}-\mathbf{q}^{\mathbf{ref}} = (\mathbf{x} - \mathbf{x}^{\mathrm{ref}}) U \]

Code

n = 6
f = 6
N = 21

onebody = pompon.OneBody(
    input_size=n,
    hidden_size=f,
    basis_size=N,
    activation="moderate+silu",
    b_scale=0.0,
    b_dist="uniform",
    w_scale=1.0,
    fix_bias=False,
    x0=x_train[: N - 1],
)

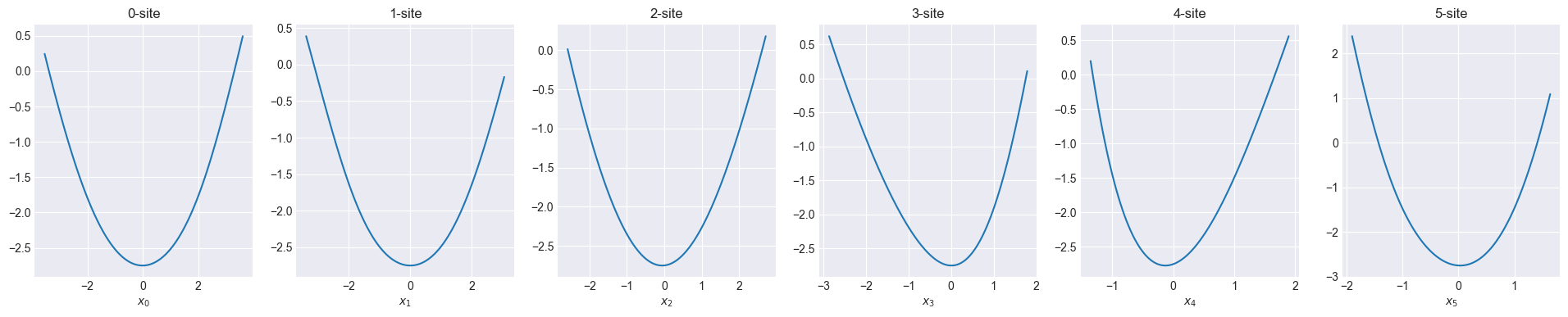

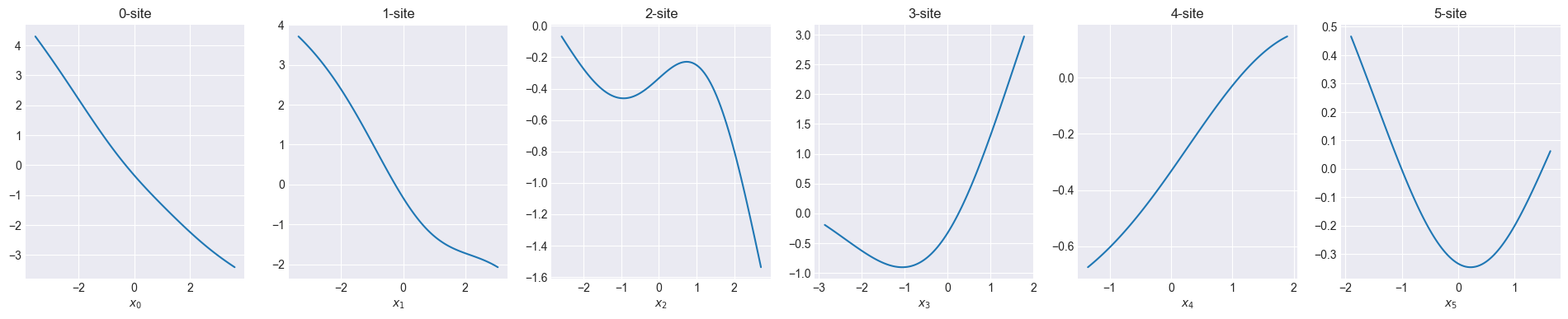

Visualize initial one-body function

Code

def show_onebody(model):
    f = model.hidden_size
    fig, axs = plt.subplots(1, f, figsize=(4 * f, 4))

    for i in range(f):
        x = np.linspace(np.min(x_train[:, i]), np.max(x_train[:, i]), 100)
        _x = np.zeros((100, 6))
        _x[:, i] = x
        y = model.forward(_x)[:, 0]
        axs[i].set_title(f"{i}-site")
        axs[i].set_xlabel(f"$x_{i}$")
        axs[i].plot(x, y)
    plt.show()

Code

def show_basis(model):
    f = model.hidden_size
    fig, axs = plt.subplots(1, f, figsize=(4 * f, 4))
    q = model.coordinator.forward(x_train)
    q0 = model.q0
    for i in range(f):
        _q = np.linspace(np.min(q[:, i]), np.max(q[:, i]), 100)
        phi = model.basis[i].forward(_q, q0[:, i])
        axs[i].set_title(f"{i}-site")
        axs[i].set_xlabel(f"$Q_{i}$")
        axs[i].plot(_q, phi)
    plt.show()

Code

show_onebody(onebody)
show_basis(onebody)

Optimize one-body

Code

from pompon.optimizer import Adam

optimizer = Adam(lr=1.0e-02).setup(
    model=onebody,
    x_train=x_train,
    y_train=y_train,
    f_train=f_train,
    batch_size=625,
    x_test=x_test,
    y_test=y_test,
    outdir="data",
)
trace = optimizer.optimize(epochs=500, epoch_per_log=500)
show_onebody(onebody)
show_basis(onebody)

2024-10-16 10:39:44 - INFO:pompon.pompon.model - Model is exported to data/model_initial.h5

Code

def plot_trace(trace):
    plt.plot(
        trace["epoch"], np.sqrt(trace["mse_train"]) * y_scale, label="train"
    )
    plt.plot(trace["epoch"], np.sqrt(trace["mse_test"]) * y_scale, label="test")
    plt.xticks(np.arange(0, trace["epoch"][-1], 4000), rotation=45)
    plt.xlabel("epochs")
    plt.ylabel("RMSE Energy [eV]")
    plt.yscale("log")
    plt.legend()
    plt.show()

Code

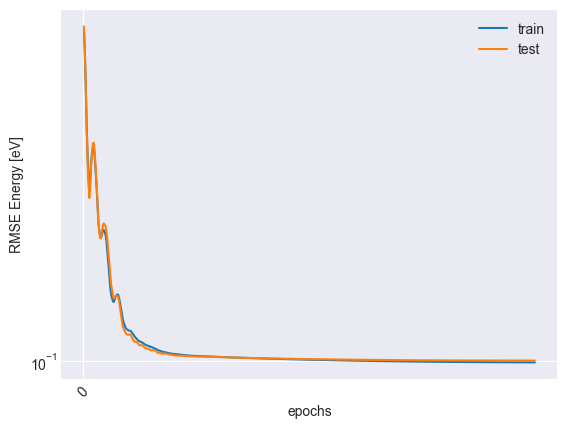

plot_trace(trace)

Code

onebody.export_h5("data/onebody.h5")
onebody = pompon.OneBody.import_h5("data/onebody.h5")

2024-10-16 10:39:50 - INFO:pompon.pompon.model - Model is exported to data/onebody.h5
2024-10-16 10:39:50 - INFO:pompon.pompon.model - Model is imported from data/onebody.h5

Sum of one-body function can fit in 100 meV order.

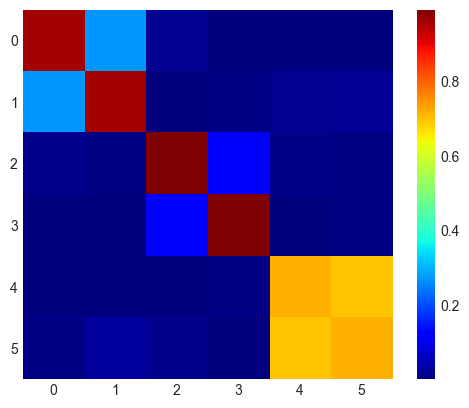

Visualize coordinator after one-body optimization

Code

onebody.basis.plot_data()

Code

plt.imshow(np.abs(onebody.coordinator.U.data))
plt.grid()
plt.colorbar()
plt.show()

Use one-body function as initial NNMPO

\[ y = W_0 + W_1\phi^{(1)} + \cdots W_f\phi^{(f)} \] \[ \to \begin{bmatrix} 1 & W_0 + W_1\phi^{(1)} \\ \end{bmatrix} \begin{bmatrix} 1 & W_2\phi^{(2)} \\ 0 & 1 \\ \end{bmatrix} \begin{bmatrix} 1 & W_3\phi^{(3)} \\ 0 & 1 \\ \end{bmatrix} \cdots \begin{bmatrix} W_3\phi^{(f)} \\ 1 \\ \end{bmatrix} \]

Code

nnmpo = onebody.to_nnmpo()

2024-10-16 10:39:51 - INFO:pompon.pompon.sop - OneBody function is converted to NNMPO

Code

from pompon.optimizer import Adam, Sweeper

optimizer = Adam(lr=1.0e-03).setup(
    model=nnmpo,  # <- changed!!
    x_train=x_train,
    y_train=y_train,
    f_train=f_train,
    batch_size=125,
    x_test=x_valid,
    y_test=y_valid,
    outdir="data",
)

sweeper = Sweeper(optimizer)

2024-10-16 10:39:51 - INFO:pompon.pompon.model - Model is exported to data/model_initial.h5

Code

import optax

for i in range(5):
    optimizer.lr = 1.0e-03
    solver = optax.adam(1.0e-04)
    sweeper.sweep(
        nsweeps=3,
        opt_tol=1.0e-10,
        opt_maxiter=100,
        opt_batchsize=625,
        cutoff=1.0e-01,
        optax_solver=solver,
        onedot=(i == 0),  # <- First step should be onedot.
        auto_onedot=False,  # <- Automatically switch to onedot if the bond dimension reaches maxdim.
        maxdim=14,
    )
    trace = optimizer.optimize(epochs=200, epoch_per_log=200)
    nnmpo.export_h5(
        f'data/nnmpo_step_{i}_rmse_{np.sqrt(trace["mse_test"][-1]) * y_scale:.3e}.h5'
    )

for i in range(5, 10):
    optimizer.lr = 1.0e-04  # <- Lower learning rate.
    solver = optax.adam(1.0e-05)
    sweeper.sweep(
        nsweeps=3,
        opt_tol=1.0e-10,
        opt_maxiter=500,
        opt_batchsize=625,
        cutoff=1.0e-02,
        optax_solver=solver,
        onedot=(i == 0),  # <- First step should be onedot.
        auto_onedot=True,  # <- Automatically switch to onedot if the bond dimension reaches maxdim.
        maxdim=14,
    )
    trace = optimizer.optimize(epochs=200, epoch_per_log=200)
    nnmpo.export_h5(
        f'data/nnmpo_step_{i}_rmse_{np.sqrt(trace["mse_test"][-1]) * y_scale:.3e}.h5'
    )

# Conjugate gradient optimization
sweeper.sweep(
    nsweeps=10,
    opt_tol=1.0e-08,
    opt_maxiter=2000,
    opt_batchsize=625,
    # optax_solver=solver,
    use_CG=True,  # <-- !!!
    onedot=True,
    maxdim=14,
)
optimizer.lr = 1.0e-07
trace = optimizer.optimize(epochs=200, epoch_per_log=200)

plot_trace(trace)

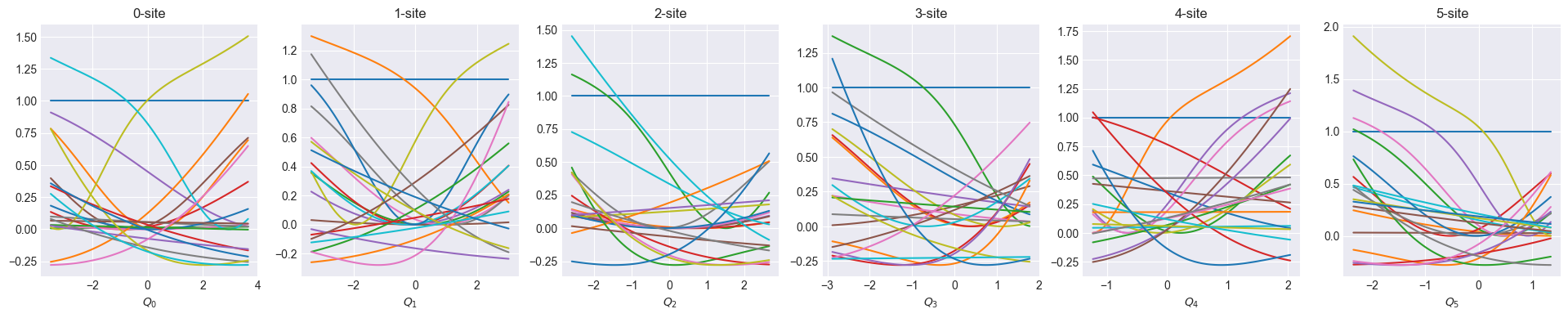

show_basis(nnmpo)

2024-10-16 10:40:02 - INFO:pompon.pompon.model - Model is exported to data/nnmpo_step_0_rmse_7.492e-02.h5

2024-10-16 10:40:16 - INFO:pompon.pompon.model - Model is exported to data/nnmpo_step_1_rmse_2.839e-02.h5

2024-10-16 10:40:30 - INFO:pompon.pompon.model - Model is exported to data/nnmpo_step_2_rmse_2.070e-02.h5

2024-10-16 10:40:43 - INFO:pompon.pompon.model - Model is exported to data/nnmpo_step_3_rmse_3.494e-02.h5

2024-10-16 10:40:56 - INFO:pompon.pompon.model - Model is exported to data/nnmpo_step_4_rmse_1.418e-02.h5

2024-10-16 10:41:23 - INFO:pompon.pompon.model - Model is exported to data/nnmpo_step_5_rmse_7.052e-03.h5

2024-10-16 10:41:41 - INFO:pompon.pompon.model - Model is exported to data/nnmpo_step_6_rmse_5.909e-03.h5

2024-10-16 10:41:59 - INFO:pompon.pompon.model - Model is exported to data/nnmpo_step_7_rmse_5.411e-03.h5

2024-10-16 10:42:17 - INFO:pompon.pompon.model - Model is exported to data/nnmpo_step_8_rmse_5.059e-03.h5

2024-10-16 10:42:35 - INFO:pompon.pompon.model - Model is exported to data/nnmpo_step_9_rmse_4.715e-03.h5

Code

nnmpo.rescale(x_scale, y_scale)
nnmpo.export_h5(
    f'data/nnmpo_final_rmse_{np.sqrt(trace["mse_test"][-1]) * y_scale:.3e}.h5'
)

2024-10-16 10:44:16 - INFO:pompon.pompon.model - Model is exported to data/nnmpo_final_rmse_1.550e-03.h5

Code

trace

shape: (2_200, 6)

epoch	mse_train	mse_test	mse_train_f	tt_norm	tt_ranks
i64	f64	f64	f64	f64	list[i64]
1	0.033321	0.034835	0.259389	-14.813811	[2, 2, … 2]
2	0.033062	0.034307	0.259242	-14.813811	[2, 2, … 2]
3	0.033042	0.033916	0.256926	-14.813811	[2, 2, … 2]
4	0.032263	0.033084	0.255528	-14.813811	[2, 2, … 2]
5	0.033542	0.034455	0.254564	-14.813811	[2, 2, … 2]
…	…	…	…	…	…
2196	0.000002	0.000014	0.00001	-220.626693	[8, 14, … 9]
2197	0.000002	0.000013	0.00001	-220.626693	[8, 14, … 9]
2198	0.000002	0.000013	0.00001	-220.626693	[8, 14, … 9]
2199	0.000002	0.000013	0.00001	-220.626693	[8, 14, … 9]
2200	0.000002	0.000013	0.00001	-220.626693	[8, 14, … 9]

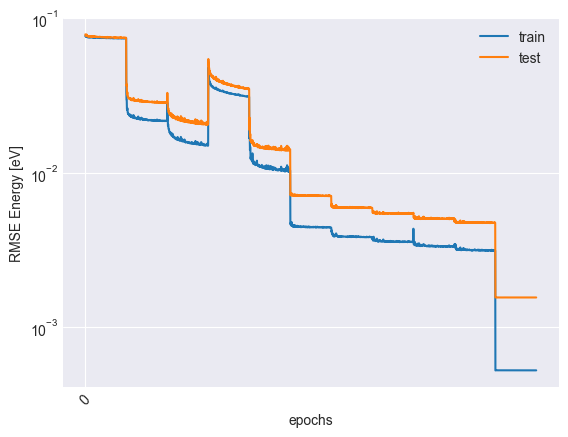

Visualize the optimization traces

Code

plt.plot(trace["epoch"], np.sqrt(trace["mse_train"]) * y_scale, label="train")
plt.plot(trace["epoch"], np.sqrt(trace["mse_test"]) * y_scale, label="test")
plt.xticks(np.arange(0, trace["epoch"][-1], 4000), rotation=45)
plt.xlabel("epochs")
plt.ylabel("RMSE Energy [eV]")
plt.yscale("log")
plt.legend()
plt.savefig('assets/trace.svg')
plt.show()

Code

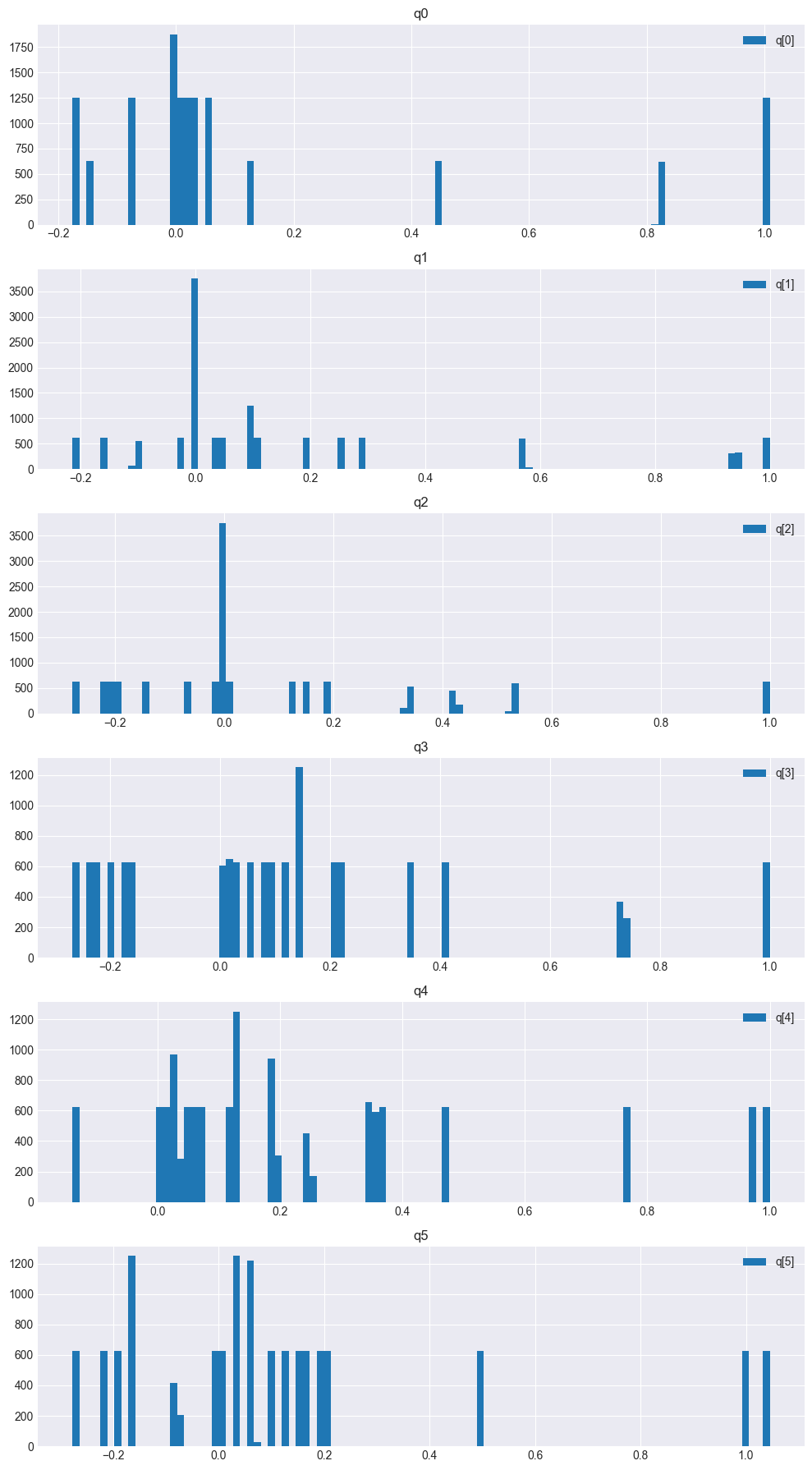

nnmpo.plot_basis(x_train / x_scale)

Code

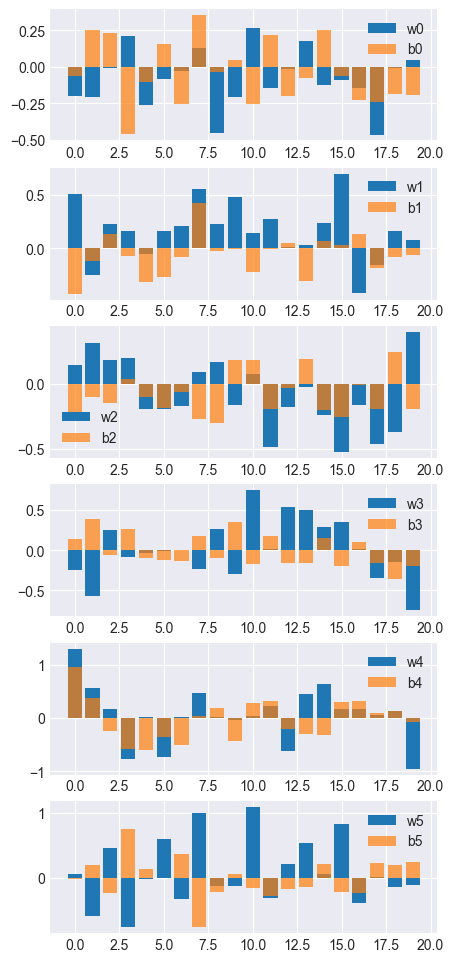

for param in nnmpo.params():
    print(param)
    if param.name.startswith("b"):
        print(param.data)

Parameter(w1, shape=(20,))
Parameter(b1, shape=(20,))
[-0.39287908 -0.13464318  0.14050318 -0.07814877 -0.03572304 -0.37963561
 -0.0855011   0.55868097 -0.01750081  0.23813855 -0.27342234  0.04030169
  0.12940236 -0.32228352  0.09547939 -0.01471205  0.06512873 -0.2840365
  0.04007023  0.20726764]
Parameter(b3, shape=(20,))
[ 0.15595645  0.78521664 -0.22730115  0.3919457  -0.26728326 -0.24770266
 -0.21508083  0.17693537 -0.05250274  0.41195362 -0.29535957  0.21481374
 -0.17795398 -0.26547028  0.2415685  -0.15915255  0.38545226 -0.17031766
 -0.66347873 -0.22850493]
Parameter(w3, shape=(20,))
Parameter(w0, shape=(20,))
Parameter(b0, shape=(20,))
[-0.09522305  0.11708057  0.29824885 -0.48003036 -0.09094859  0.09054434
 -0.27302538  0.45346682  0.25239392  0.0707163  -0.31713018  0.03327424
 -0.12000518 -0.021749    0.10488636 -0.18124672 -0.33535119 -0.46569359
 -0.21225473 -0.10930101]
Parameter(b2, shape=(20,))
[-0.32414808 -0.17914898 -0.11512402  0.07283107 -0.11565191 -0.21038414
 -0.12420237 -0.38883823 -0.36601631  0.22639764  0.30256851 -0.25292004
  0.1423828   0.26743926 -0.22291431 -0.2352676   0.03834339 -0.20269271
  0.29183001 -0.21124825]
Parameter(w2, shape=(20,))
Parameter(w5, shape=(20,))
Parameter(b5, shape=(20,))
[-0.08737266  0.1383658  -0.05758187  0.7263479   0.16535198 -0.05600558
  0.35295224 -1.14079062 -0.3458684  -0.01694047 -0.28313654 -0.34195386
 -0.26088313 -0.194944    0.23606602 -0.30504939 -0.39490075  0.26061878
  0.25830287  0.31402083]
Parameter(w4, shape=(20,))
Parameter(b4, shape=(20,))
[ 0.94919174  0.05418159 -0.81424432 -0.72655884 -0.62482164 -0.45372532
 -0.76737424  0.09948951  0.21497529 -0.59259597  0.316253    0.30250957
 -0.17445118 -0.26831699 -0.28920347  0.30175617  0.30627362  0.10200498
  0.17171362 -0.13517611]
Parameter(x0, shape=(20, 6))
Core(shape=(1, 21, 8), leg_names=('β0', 'i1', 'β1'), dtype=float64)
Parameter(norm, shape=())
Core(shape=(1, 21, 8), leg_names=('β0', 'i1', 'β1'), dtype=float64)
Core(shape=(14, 21, 9), leg_names=('β4', 'i5', 'β5'), dtype=float64)
TwodotCore(shape=(1, 21, 21, 14), leg_names=('β0', 'i1', 'i2', 'β2'))
Core(shape=(8, 21, 14), leg_names=('β1', 'i2', 'β2'), dtype=float64)
Core(shape=(14, 21, 14), leg_names=('β2', 'i3', 'β3'), dtype=float64)
Core(shape=(14, 21, 14), leg_names=('β3', 'i4', 'β4'), dtype=float64)
Core(shape=(9, 21, 1), leg_names=('β5', 'i6', 'β6'), dtype=float64)
Parameter(U, shape=(6, 6))

Code

plt.imshow(np.abs(nnmpo.coordinator.U.data))
plt.grid()
plt.colorbar()
plt.show()

Code

nnmpo = pompon.NNMPO.import_h5(
    f'data/nnmpo_final_rmse_{np.sqrt(trace["mse_test"][-1]) * y_scale:.3e}.h5'
)
y_pred = nnmpo.forward(x_test * x_scale)

2024-10-16 10:44:17 - INFO:pompon.pompon.model - Model is imported from data/nnmpo_final_rmse_1.550e-03.h5

Code

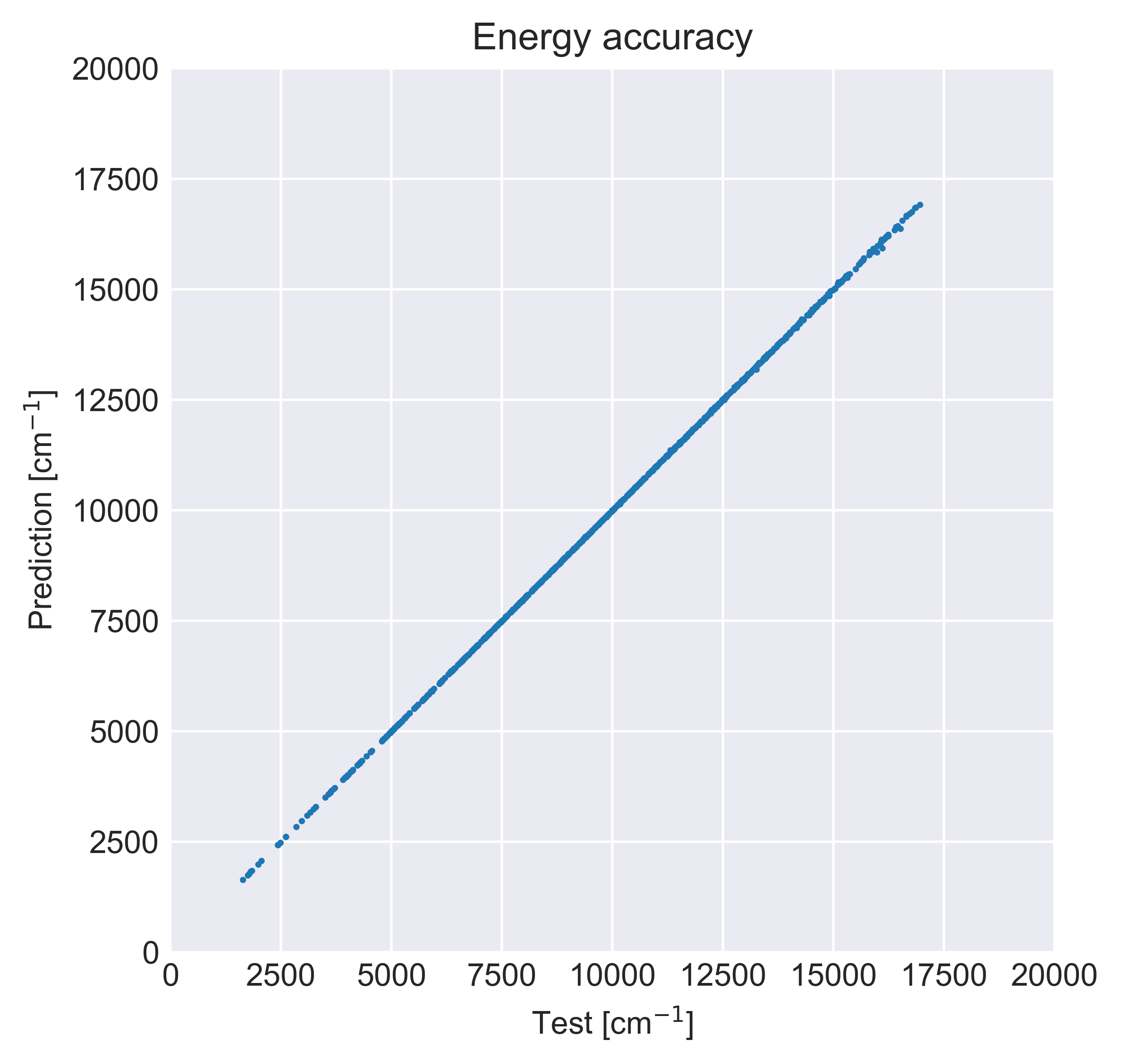

fig, ax = plt.subplots(dpi=500)

ax.scatter(
    (y_test * y_scale + y_shift - y_min) * 8.065544e3,
    (y_pred + y_shift - y_min) * 8.065544e3,
    s=1,
)
plt.gca().set_aspect("equal", adjustable="box")
plt.xlabel("Test [cm$^{-1}$]")
plt.ylabel("Prediction [cm$^{-1}$]")
plt.xlim(0, 20000)
plt.ylim(0, 20000)
plt.title("Energy accuracy")
plt.tight_layout()
plt.show()
